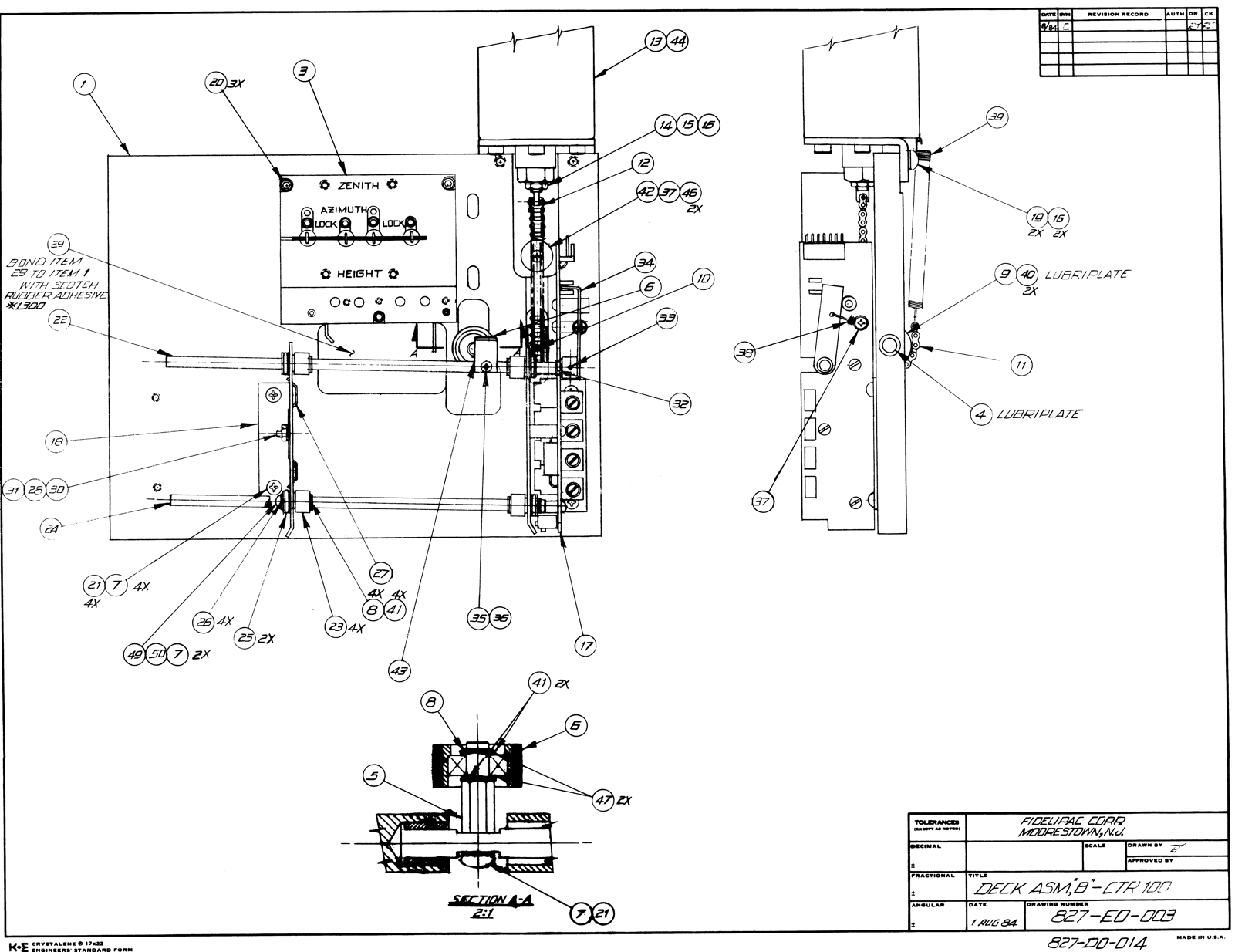

827-B0-014 Deck Asm A
Page No. 00001 10/16/84 Bill Of Material, CTR100
| Part Number | Description | Item Quantity | Designation/Location |
| 320-A0-000 | SOLENOID | 1 | 13 |
| 415-A0-011 | HOUSING 2 CONDUCTOR | 1 | 44 |
| 525-A0-000 | SHIELD MU METAL DECK | 1 | 29 |
| 526-A0-000 | STUD SOLENOID ADJ | 1 | 14 |
| 531-B0-000 | DECK A | 1 | 1 |
| 543-A0-009 | BRACKET LEFT A | 1 | 18 |
| 543-B0-008 | ACTUATOR—CART | 1 | 43 |
| 5A0-A0-000 | CHAIN | 1 | 11 |
| 5A0-A0-001 | LINK, CONNECTING | 1 | 12 |
| 5A1-A0-001 | FOOT—SOLENOID STOP | 1 | 42 |
| 5A3-A0-000 | ROLLER—CART HOLD DOWN | 4 | 23 |
| 827-A0-002 | PINCH ROLLER | 1 | 6 |
| 5A7-06-551 | "O" RING | 2 | 25 |
| 5AA-B0-002 | SPROCKET—SOLENOID | 1 | 9 |
| 5AB-C0-003 | BEARING HOLD DOWN SH | 4 | 26 |
| 5B3-A0-001 | RETAINER RING 3/16 | 5 | 8 |
| 5B4-06-062 | ROLL PIN 1/16 x 3/8 LG | 1 | 33 |
| 5B4-DE-062 | ROLL PIN 1/16 x 7/8 | 1 | 10 |
| 5B7-A0-000 | BEARING—NYLINER | 1 | 32 |
| 5B8-A0-001 | SHAFT—VERT, BALL BEARING | 1 | 5 |
| 5B8-A0-002 | SHAFT—HORIZ | 1 | 4 |
| 5B8-A0-003 | SHAFT CART HOLD DOWN FRONT | 1 | 24 |
| 5B8-B0-004 | SHAFT, REAR HOLD DOWN | 0 | 22 |
| 5E1-A0-002 | SPRING EXTEN SOLENOID | 1 | 39 |
| 5E1-B0-001 | SPRING EXTEN SWITCH | 1 | 38 |
| 5E2-A0-000 | SPRING—CART GUIDE | 1 | 27 |
| 600-20-032 | NUT—SOLENOID ADJ | 1 | 15 |
| 601-07-000 | WR310DX.191DX.025TSS | 6 | 41 |
| 601-07-001 | WASHER | 1 | 45 |
| 601-20-440 | NUT HEX 4-40 | 1 | 30 |
| 603-02-124 | WAVY WASHER | 2 | 47 |
| 603-02-238 | WASHER—WAVY | 2 | 40 |
| 60C-11-000 | L’ WASHER IT £10 | 1 | 16 |
| 60C-i1-200 | L’ WASHER IT £2 | 1 | 36 |
| 60C-11-400 | L’ WASHER IT £4 | 1 | 31 |
| 60C-11-600 | WASHER IT £6 | 2 | 7 |
| 620-05-632 | SCREW PH 6-32 x .31 LG | 3 | 21 |
| 621-03-256 | SCREW PH 2-56 x 3/16 PL | 1 | 35 |
| 621-04-440 | SCREW PH 4-40 x 1/4 | 4 | 37 |
| 621-0C-032 | SCREW PH 10-32 x .75LG | 3 | 19 |
| 645-A0-440 | SC FH100> 4-40 x 1/4 SS | 1 | 28 |
| 6Y2-16-632 | SCREW SHC 6-32 x 1.38 L | 3 | 20 |
