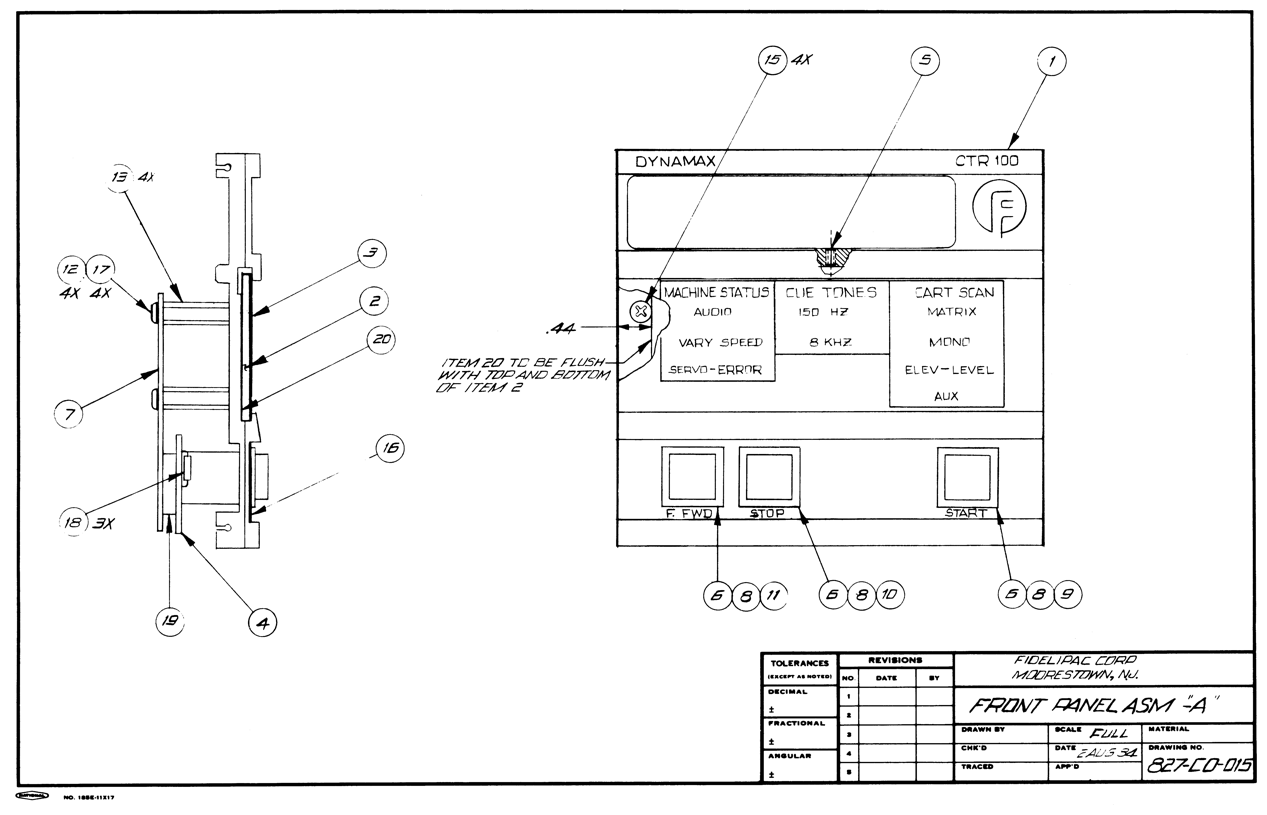

827-B0-015 Front Panel Assembly A
Page No. 00001 10/16/84 Bill Of Material, CTR100
| Part Number | Description | Item Quantity | Designation/Location |
| 110-22-130 | 13Ω 1/4W 5% Carbon Film | 7 | 18 |
| 260-A0-001 | LAMP 382 | 3 | 8 |
| 364-A0-005 | SWITCH PUSH BUTTON | 3 | 6 |
| 364-A0-006 | LENS WHITE | 1 | 11 |
| 364-A0-007 | LENS RED | 1 | 10 |
| 364-A0-008 | LENS GREEN | 1 | 9 |
| 407-A0-035 | PCB SWITCH [A] | 1 | 4 |
| 410-A0-003 | SOCKET IC | 1 | 19 |
| 532-C0-003 | FRONT PANEL A | 1 | 1 |
| 581-A0-003 | OVERLAY-SWITCH "A" | 1 | 16 |
| 581-B0-001 | OVERLAY-DISPLAY "A" | 1 | 3 |
| 581-A0-006 | MYLAR BACKING DISPLAY | 1 | 20 |
| 581-B0-002 | PANEL INSERT "A" | 1 | 2 |
| 5B2-A0-006 | SPACER HEX 1/4 x 7/8 ALUMN 6-32 | 4 | 13 |
| 60C-11-600 | L’ WASHER | 4 | 12 |
| 621-04-632 | SCRW PH 6-32 x 1/4 | 4 | 17 |
| 641-04-632 | SCRW FH 6-32 x 1/4 | 4 | 15 |
| 6W2-04-632 | SETSCREW 6-32 x 1/4 CUP BLK | 1 | 5 |
