827-B0-000 Head Bridge

Page No. 00001 12/05/84 Bill Of Material, CTR100
Part Number Description Item Quantity Designation/Location
532-C0-000 MTG BLK HEAD CLAMP 2 2
532-C0-001 HEAD BRIDGE 1 3
532-B0-002 HEAD CLAMP 2 4
5AB-A0-001 TAPE GUIDE-CURVED 1 11
5AB-A0-002 TAPE GUIDE-STRAIGHT 1 10
5B4-08-078 ROLL PIN 5/64X1/2 LG PL 2 12
5B4-10-078 ROLL PIN 5/64 x 1 LG P 2 9
5B4-12-078 ROLL PIN 5/64 x 1 1/8 LG PL 2 7
5E1-A0-000 SPRING EXT HEAD BRIDGE 6 8
5E2-04-148 SPRNG COMP C0148-023 2 19
5Z5-14-832 SHOULDER SCRW .180 x 1 2 5
6W2-08-632 SC SHS 6-32 x .50 LG CONE 2 15
6Y2-06-632 SC SH 6-32 x .38 LG CONE 4 14
6Y2-08-440 SCRW SHC 4-40 x 1/2 BL 4 18
6Y2-0A-256 SCR SCH 2-56 x .62 LG BLK 4 13
6Y2-10-256 SCRW SHC 2-56 x 1 BLK 2 17

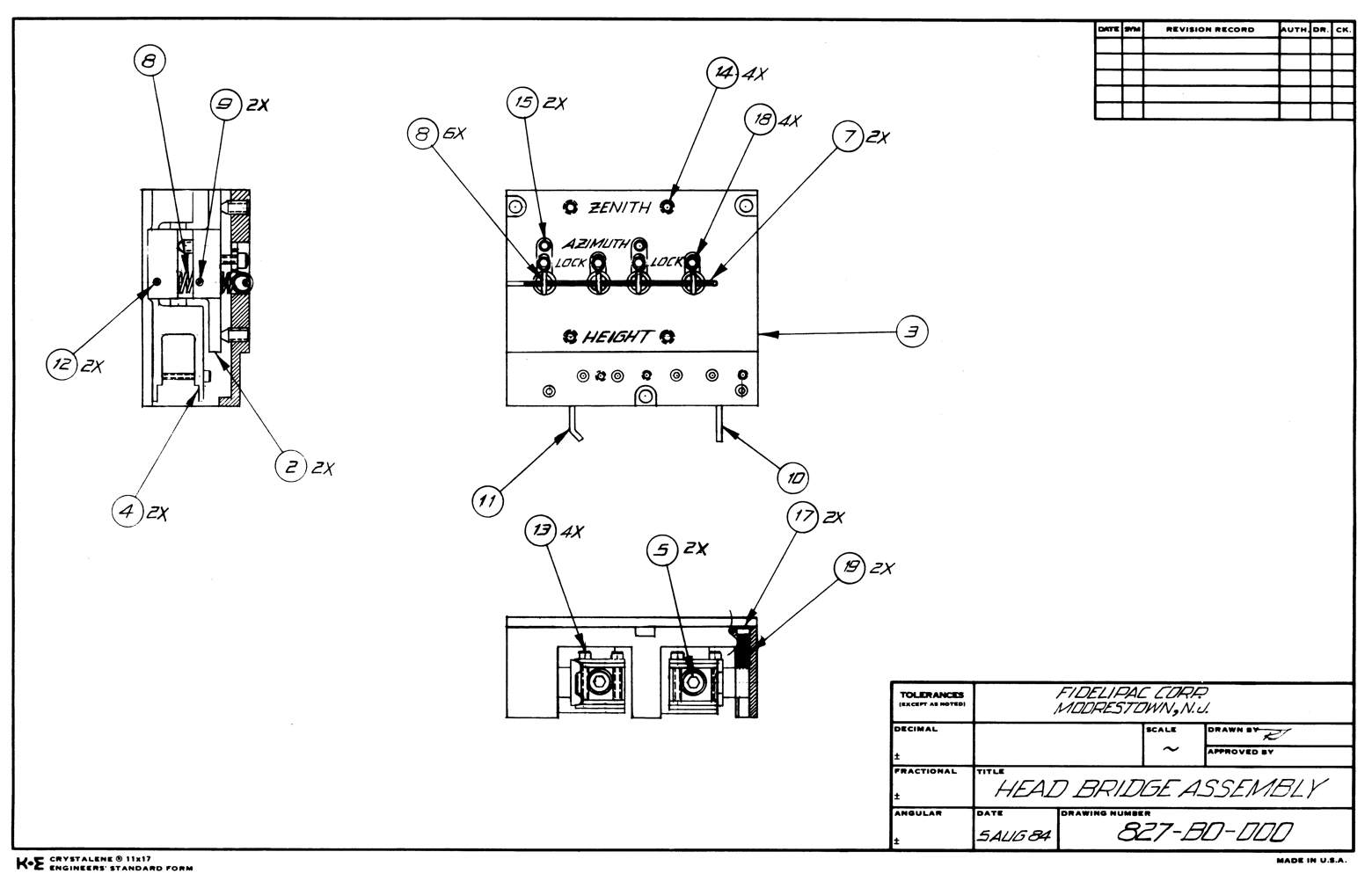

827-BO-000 drawing
