827-B0-008 Partition Assembly A

Page No. 00001 10/16/84 Bill Of Material, CTR100
Part Number Description Item Quantity Designation/Location
230-A0-012 LM7815CT 2 4
440-A0-000 INSULATOR-SIL PAD 2 5
525-B0-003 MU METAL SHIELD PART 1 3
541-B0-018 PARTITION A 1 1
5A4-A0-002 LONG CARD GUIDE 5 2
5AB-A0-008 SCREW CAP 1 10
607-01-124 SHOULDER WASHER 2 6
607-18-632 NUT CAPTIVE 4 8
621-03-440 SCREW 4-40 x 3/16 PH 4 7
6Y2-04-632 SCREW 1 9

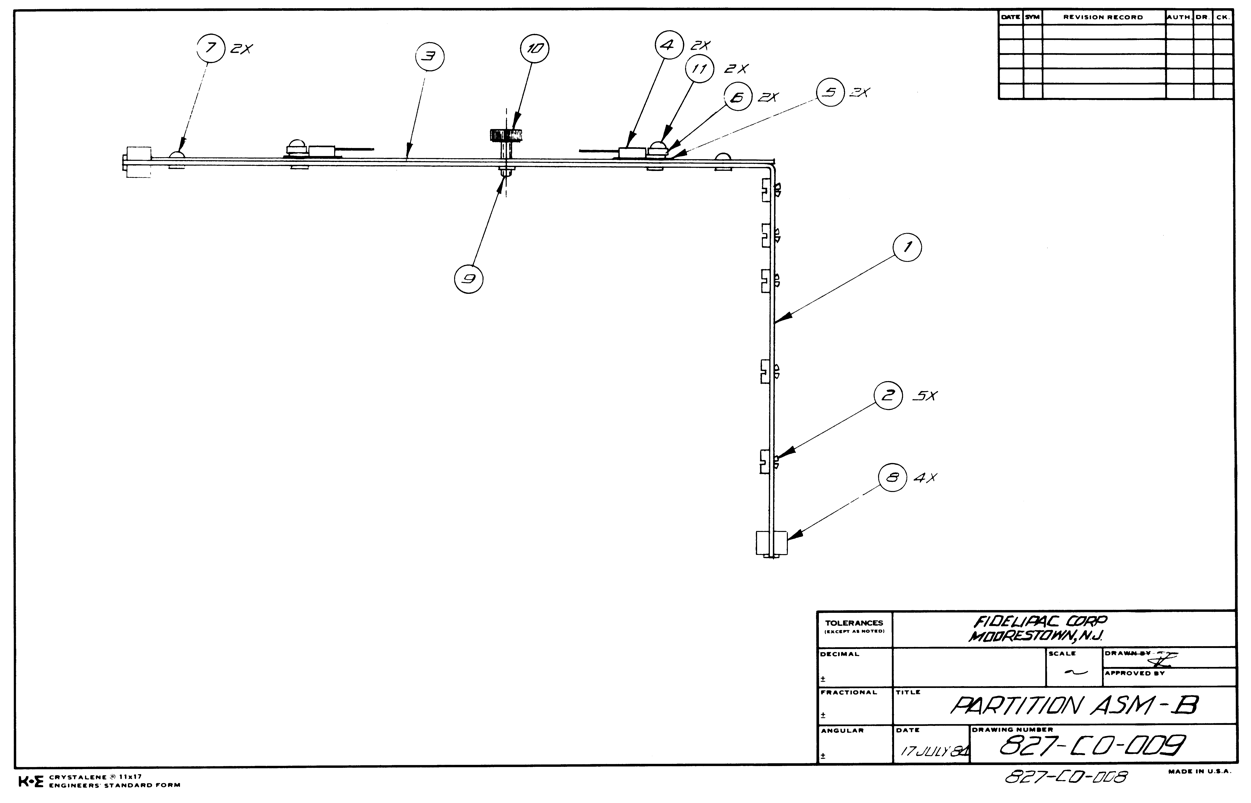

827-C0-008 & 827-C0-009 drawing
