807-A0-045 Lamp PWA — A

Page No. 00001 12/05/84 Bill Of Material, CTR100
Part Number Description Quantity Item Designation/Location
110-22-68A 6.8 1/4W 5% CF RES 9 7 R1-9
260-A0-000 LAMP 7382 18 3
407-A0-045 LAMP PCB CTR 100 A 1 8
410-A0-003 16 PIN DIP SOCKET 1 1
414-A0-004 PIN SOCKET LAMPS 36 2
5AB-A0-004 LIGHT SHIELDS 9 4
5AB-A0-005 LARGE CLIP LIGHT SHIELD 1 6
5AB-A0-006 SMALL CLIP LIGHT SHIELD 1 5

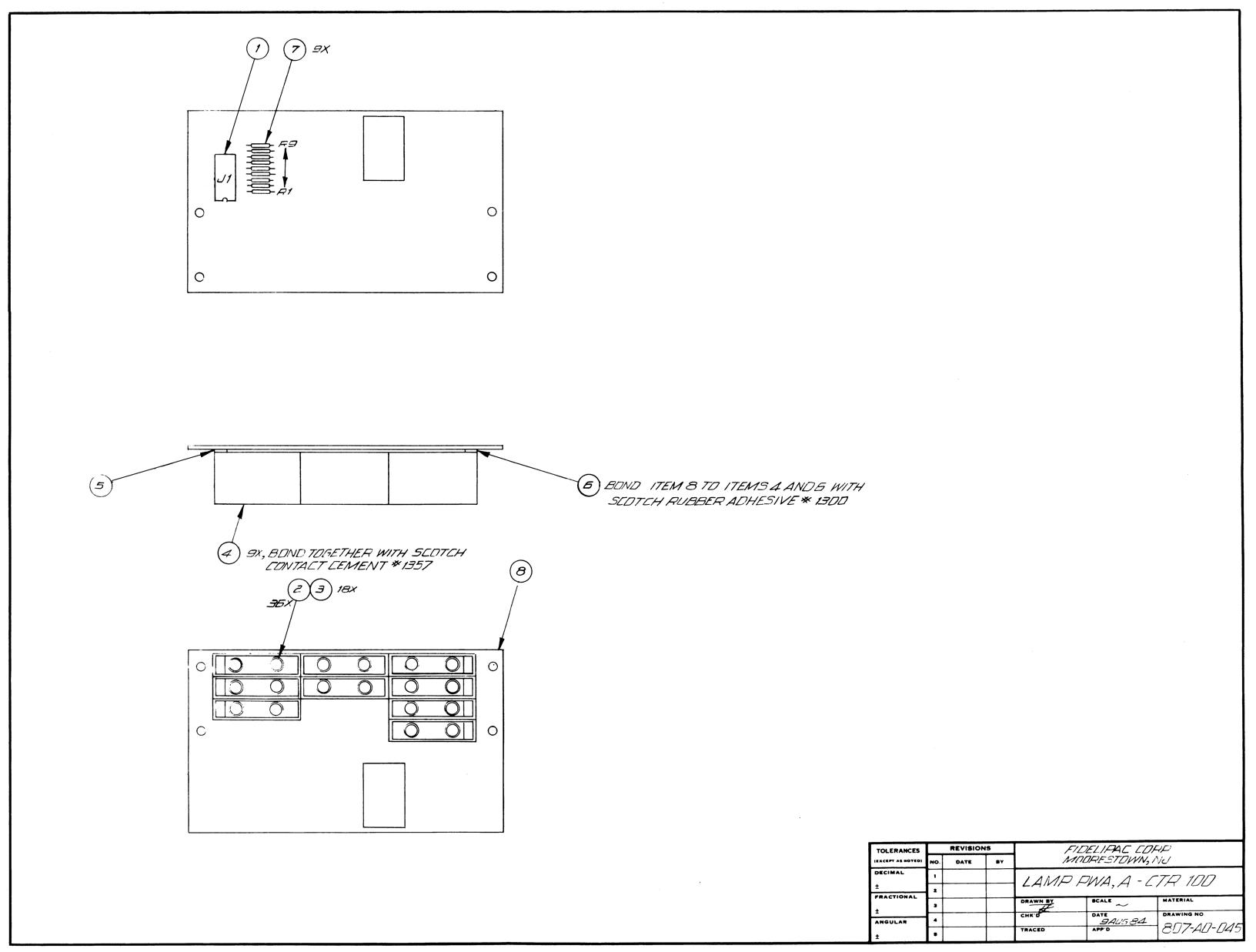

807-A0-045 drawing

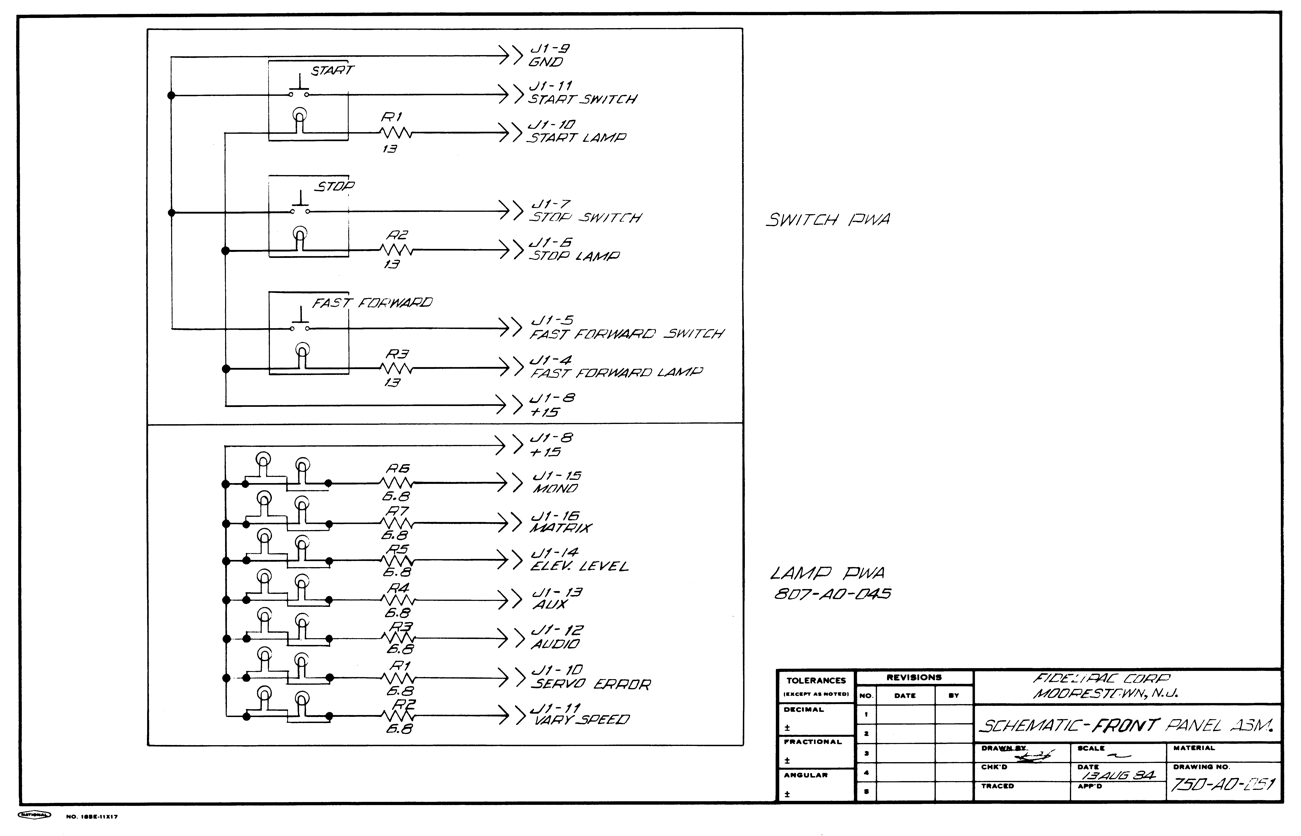

750-A0-051 schematic
