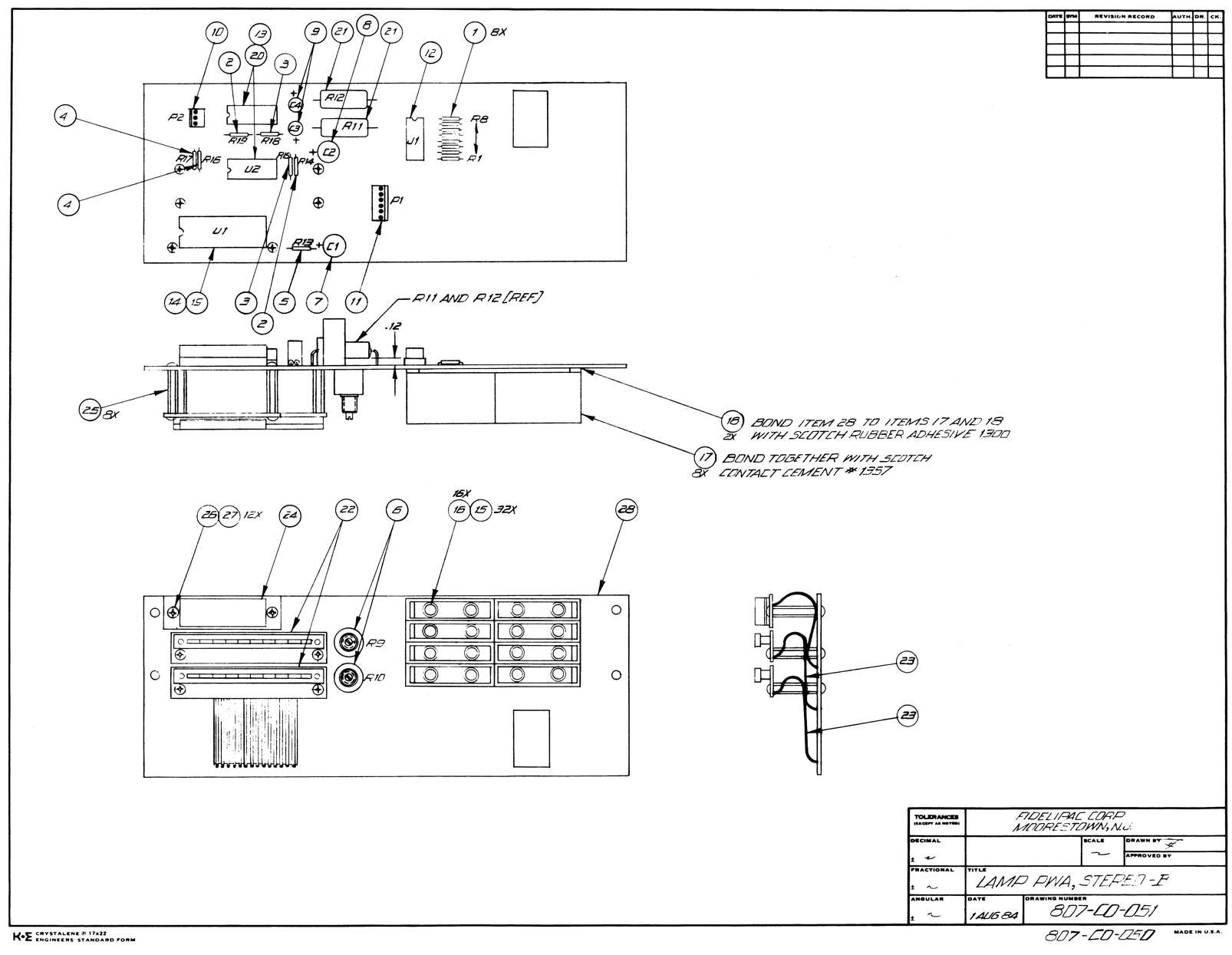

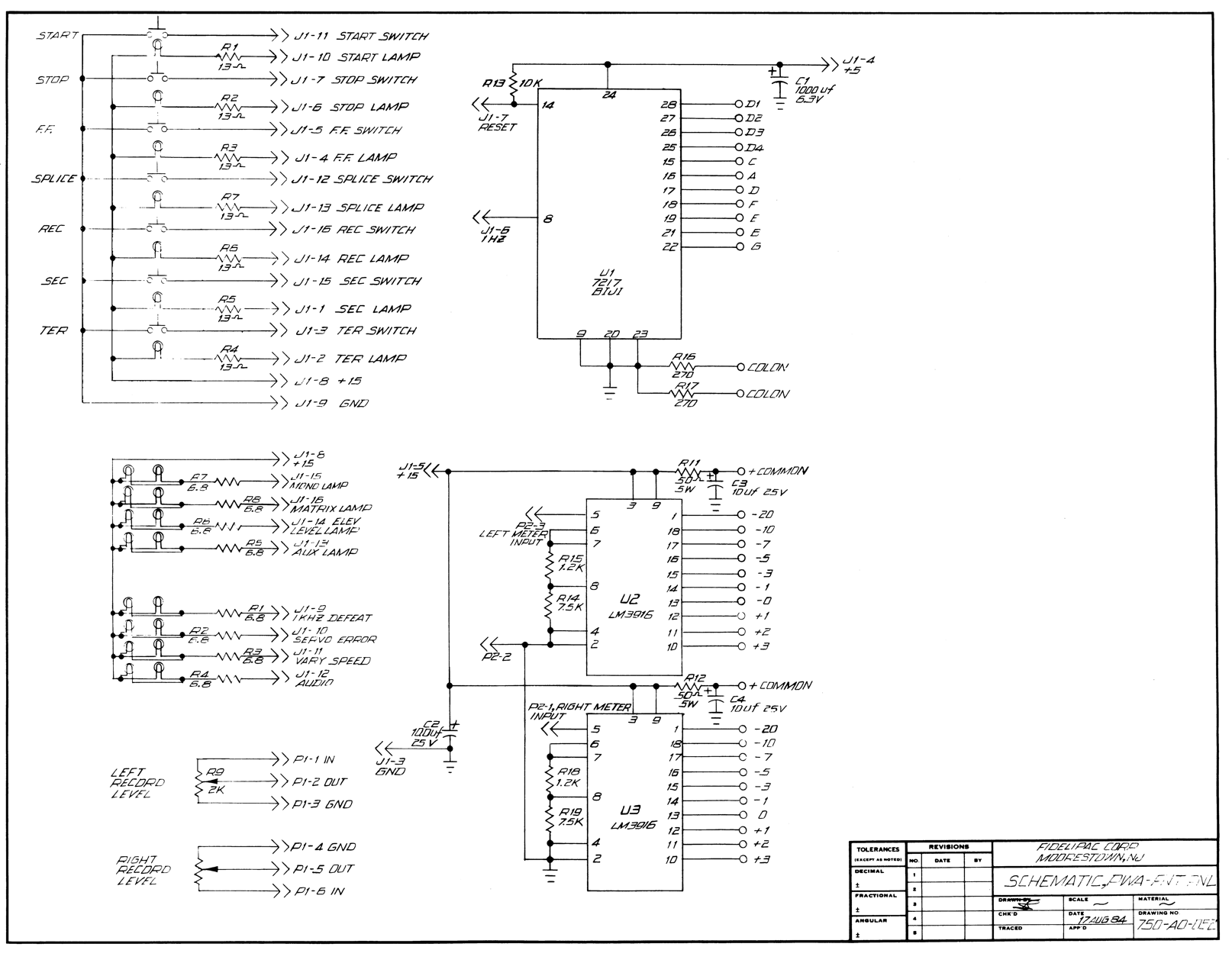

807-B0-051 Lamp PWA Stereo — B
Page No. 00001 12/05/84 Bill Of Material, CTR100
| Part Number | Description | Quantity | Item | Designation/Location |
| 011-A5-106 | 10µF E CAP | 2 | 9 | C3,4 |
| 011-A8-107 | 100µF E CAP | 1 | 8 | C2 |
| 011-B5-108 | 1000µF E CAP | 1 | 7 | C1 |
| 110-22-103 | 10K 1/4W 5% CF RES | 1 | 5 | R13 |
| 110-22-122 | 1.2K 1/4W 5% CF RES | 2 | 3 | R15,18 |
| 110-22-271 | 270 1/4W 5% CF RES | 2 | 4 | R16,17 |
| 110-22-68A | 6.8 1/4W 5% CF RES | 8 | 1 | R1-8 |
| 110-22-752 | 7.5K 1/4W 5% CF RES | 1 | 2 | R14 |
| 150-82-500 | 50 5W 5% WW RES | 2 | 21 | R11,12 |
| 16A-33-202 | 2K POT AUDIO | 2 | 6 | R9,10 |
| 236-A0-001 | IC M7217BIJI IC | 1 | 19 | U1 |
| 236-A0-002 | LM3916N IC | 2 | 20 | U2,3 |
| 250-A0-001 | LED BARGRAPH METER | 2 | 22 |
| 260-A0-000 | LAMP 7382 | 16 | 16 |
| 407-A0-050 | LAMP PCB B CTR 100 | 1 | 28 |
| 410-A0-003 | 16 PIN DIP SOCKET | 1 | 12 | J1 |
| 410-A0-004 | 28 PIN DIP SOCKET | 1 | 14 | U1 |
| 410-A0-007 | 18 PIN DIP SOCKET | 2 | 13 | U2,3 |
| 414-A0-004 | PIN SOCKET LAMPS | 32 | 15 |
| 416-A0-009 | 3 PIN HEADER | 1 | 10 | P2 |
| 416-A0-011 | 6 PIN HEADER | 1 | 11 | P1 |
| 425-A0-000 | JUMPER CABLE | 2 | 23 |
| 5AB-A0-004 | LIGHT SHIELDS | 8 | 17 |
| 5AB-A0-005 | CLIP LIGHT SHIELD | 2 | 18 |
| 60C-11-200 | LOCK WASHER £2 | 12 | 27 |
| 621-04-256 | SCREW 2-56 x 1/4 | 12 | 26 |
| 6B2-A0-007 | SPACER 3/16 x 3/4 2-56 | 6 | 25 |
