| Part Number | Description | Quantity | Item | Designation/Location |
|---|---|---|---|---|
| 006-A6-103 | .01µF 25V D CAP | 16 | 24 | CX |
| 011-A5-106 | 10µF 50V E CAP | 1 | 32 | C29 |
| 011-AB-107 | 100µF 25V E CAP | 6 | 25 | C20-C25 |
| 031-A3-101 | 100PF S CAP | 5 | 33 | C5,11,27,31,30 |
| 031-A3-150 | 15PF S CAP | 1 | 35 | C16 |
| 031-A3-500 | 50PF S CAP | 1 | 34 | C15 |
| 041-A4-103 | .01µF 63V F CAP | 3 | 30 | C1,2,4 |
| 041-A4-104 | .1µF 63V F CAP | 4 | 26 | C7-10 |
| 041-A4-222 | .0022µF 63V F CAP | 1 | 28 | C3 |
| 041-A4-224 | .22µF 63V F CAP | 1 | 29 | C19 |
| 041-A4-333 | .033µF 63 V F CAP | 1 | 31 | C17 |
| 041-A4-472 | .0047µF 63V F CAP | 1 | 27 | C28 |
| 100-52-151 | 150 1W 5% CF RES | 1 | 15 | R51 |
| 110-22-101 | 100 1/4W 5% CF RES | 3 | 8 | R27,31,46 |
| 110-22-102 | 1K 1/4W 5% CF RES | 1 | 6 | R43 |
| 110-22-103 | 10K 1/4W 5% CF RES | 20 | 2 | R2,4,6,8,23-26,28,29,49,53,56-58,60,62,63,65,35 |
| 110-22-104 | 100K 1/4W 5% CF RES | 5 | 3 | R9-11,41,69 |
| 110-22-105 | 1M 1/4W 5% CF RES | 4 | 1 | R1,3,5,7 |
| 110-22-122 | 1.2K 1/4W 5% CF RES | 1 | 7 | R45 |
| 110-22-154 | 150K 1/4W 5% CF RES | 1 | 13 | R67 |
| 110-22-272 | 2.7K 1/4W 5% CF RES | 1 | 14 | R55 |
| 110-22-273 | 27K 1/4W 5% CF RES | 1 | 11 | R50 |
| 110-22-332 | 3.3K 1/4W 5% CF RES | 2 | 5 | R42,54 |
| 110-22-334 | 330K 1/4W 5% CF RES | 2 | 10 | R48,64 |
| 110-22-392 | 3.9K 1/4W 5% CF RES | 5 | 4 | R12,13,59,68,70 |
| 110-22-821 | 820 1/4W 5% CF RES | 2 | 9 | R47,66 |
| 120-20-10Z | 107K 1/4W 1% MF RES | 2 | 20 | R15,17 |
| 120-20-12T | 12.4K 1/4W 1% MF RES | 1 | 19 | R18 |
| 120-20-16S | 16.2K 1/4W 1% MF RES | 4 | 16 | R20,22,38,40 |
| 120-20-20T | 20.5K 1/4W 1% MF RES | 1 | 18 | R37 |
| 120-20-34T | 34.8K 1/4W 1% MF RES | 1 | 17 | R16 |
| 120-20-63S | 63.4K 1/4W 1% MF RES | 1 | 22 | R19 |
| 120-20-80S | 80.6K 1/4W 1% MF RES | 2 | 21 | R21,39 |
| 13M-33-202 | 2K V TRIM | 3 | 23 | R14,30,44 |
| 200-A0-000 | 1N4148 DIODE | 12 | 37 | D1-7,9,10,12-14 |
| 204-A0-002 | IN4733A DIODE | 1 | 38 | D8 |
| 210-A0-002 | GES5816 TRANSISTOR | 4 | 39 | Q1-Q4 |
| 230-A0-003 | LM3900 IC | 1 | 52 | U9 |
| 230-A0-008 | LF353 IC | 1 | 47 | U26 |
| 230-A0-010 | RC4558 IC | 1 | 46 | U27 |
| 231-A0-007 | 74LS04 IC | 1 | 55 | U3 |
| 231-A0-023 | 4040 IC | 7 | 50 | U5,7,11,13,18,20,25 |
| 231-A0-026 | 4066 IC | 2 | 48 | U21,22 |
| 231-A8-028 | 4081 IC | 3 | 53 | U16,17,19 |
| 231-A0-034 | 4013 IC | 2 | 51 | U8,23 |
| 231-A0-035 | 4051 IC | 1 | 49 | U14 |
| 231-A0-036 | 4070 IC | 1 | 54 | U15 |
| 231-A0-037 | 4526 IC | 2 | 56 | U6,24 |
| 231-A0-038 | 74LS93 IC | 1 | 57 | U4 |
| 231-A0-039 | 4009 IC | 1 | 58 | U10 |
| 231-A0-040 | 4046 IC | 1 | 59 | U12 |
| 236-A0-003 | MF10 IC | 2 | 45 | U1,E: |
| 350-A0-000 | RELAY 12 | 2 | 60 | RL1,2 |
| 384-A0-000 | 18.432 MHz XTAL | 1 | 36 | X1 |

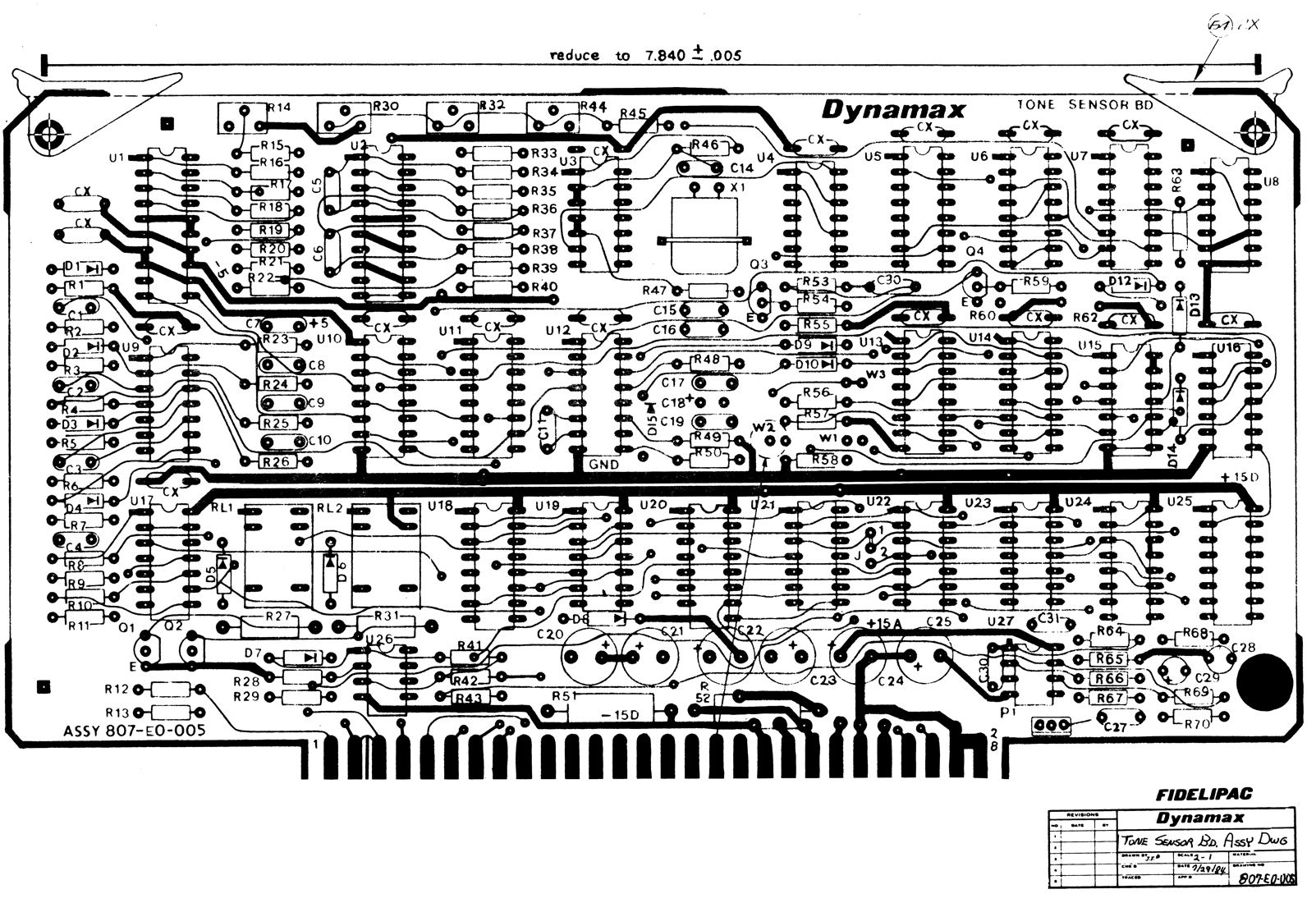

| 407-B0-005 | TONE SENSOR PCB CTR100 | 1 | 65 | |
| 410-A0-001 | 8 PIN DIP SOCKET | 2 | 40 | |
| 410-A0-002 | 14 PIN DIP SOCKET | 11 | 41 | |
| 410-A0-003 | 16 P1N DIP SOCKET | 12 | 42 | |
| 410-A0-008 | 20 PIN DIP SOCKET | 2 | 43 | |
| 416-A0-014 | 3 PIN HEADER | 1 | 44 | P1 |
| 420-A0-001 | JUMPER | 1 | 66 | JM1,5 |
| 525-C0-001 | MYLAR SHIELD | 1 | 61 | |
| 5AB-A0-007 | BOARD PULLERS | 2 | 64 | |
| 5B2-A0-013 | SPACER NYLON | 4 | 63 | |
| 621-03-440 | SCREW 4-40 x 3/16 | 8 | 62 |
