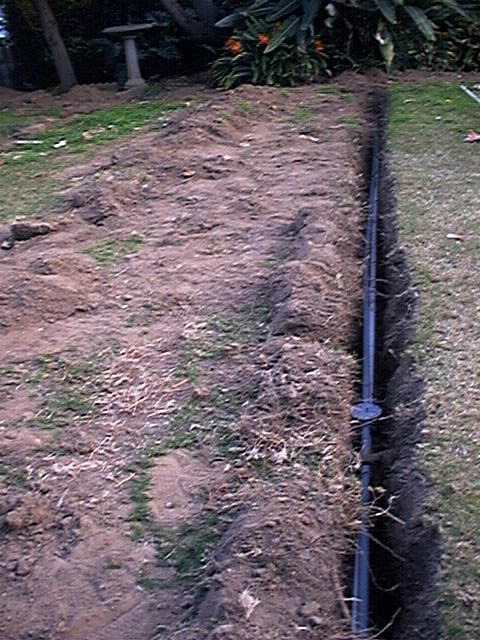

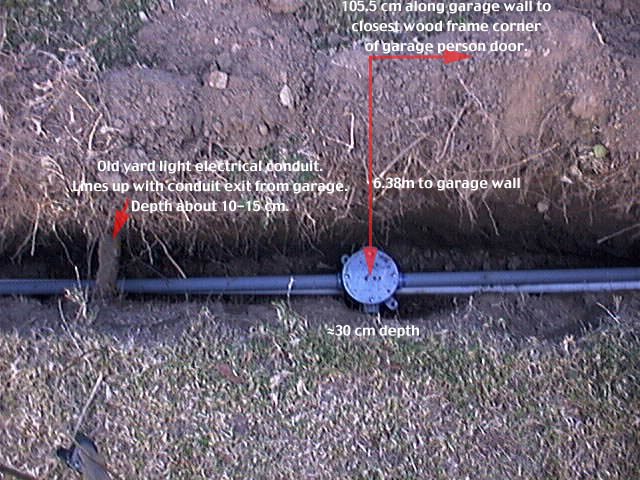

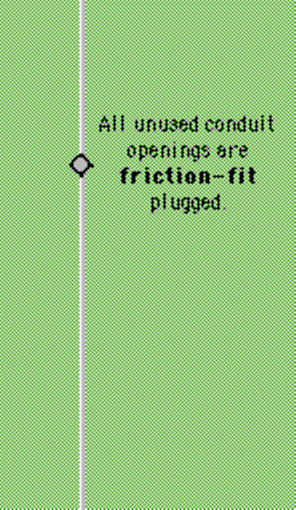

The bottom/rightmost picture is a detailed view of the same center lawn junction box shown in the upper/center picture and in the drawing. It has friction-plugged openings to allow conduits to go both east and west to the flower beds, or into the lawn for moisture sensing, if ever needed.
