827-B0-006 Front Panel Assembly B Stereo

Page No. 00001 10/16/84 Bill Of Material, CTR100
Part Number Description Item Quantity Designation/Location
110-22-130 13Ω 1/4W 5% Carbon Film 7 18
260-A0-001 LAMP 382 7 8
364-A0-005 SWITCH PUSH BUTTON 7 6
364-A0-006 LENS WHITE 4 11
364-A0-007 LENS RED 2 10
364-A0-008 LENS GREEN 1 9
407-A0-040 PCB SWITCH B 1 4
410-A0-003 SOCKET IC 1 19
532-C0-004 FRONT PANEL B 1 1
581-A0-004 OVERLAY-SWITCH "B" 1 16
581-A0-005 OVERLAY-DISPLAY "B" 1 3
581-A0-006 MYLAR BACKING DISPLAY 1 20
581-B0-000 PLEXIGLASS INSERT "B" 1 2
5B2-A0-006 SPACER HEX 1/4 x 7/8 ALUMN 6-32 4 13
60C-11-600 L’ WASHER 4 12
621-04-632 SCRW PH 6-32 x 1/4 4 17
641-04-632 SCRW FH 6-32 x 1/4 4 15
6W2-04-632 SCSET 6-32 x 1/4 CUPPTBL 2 5

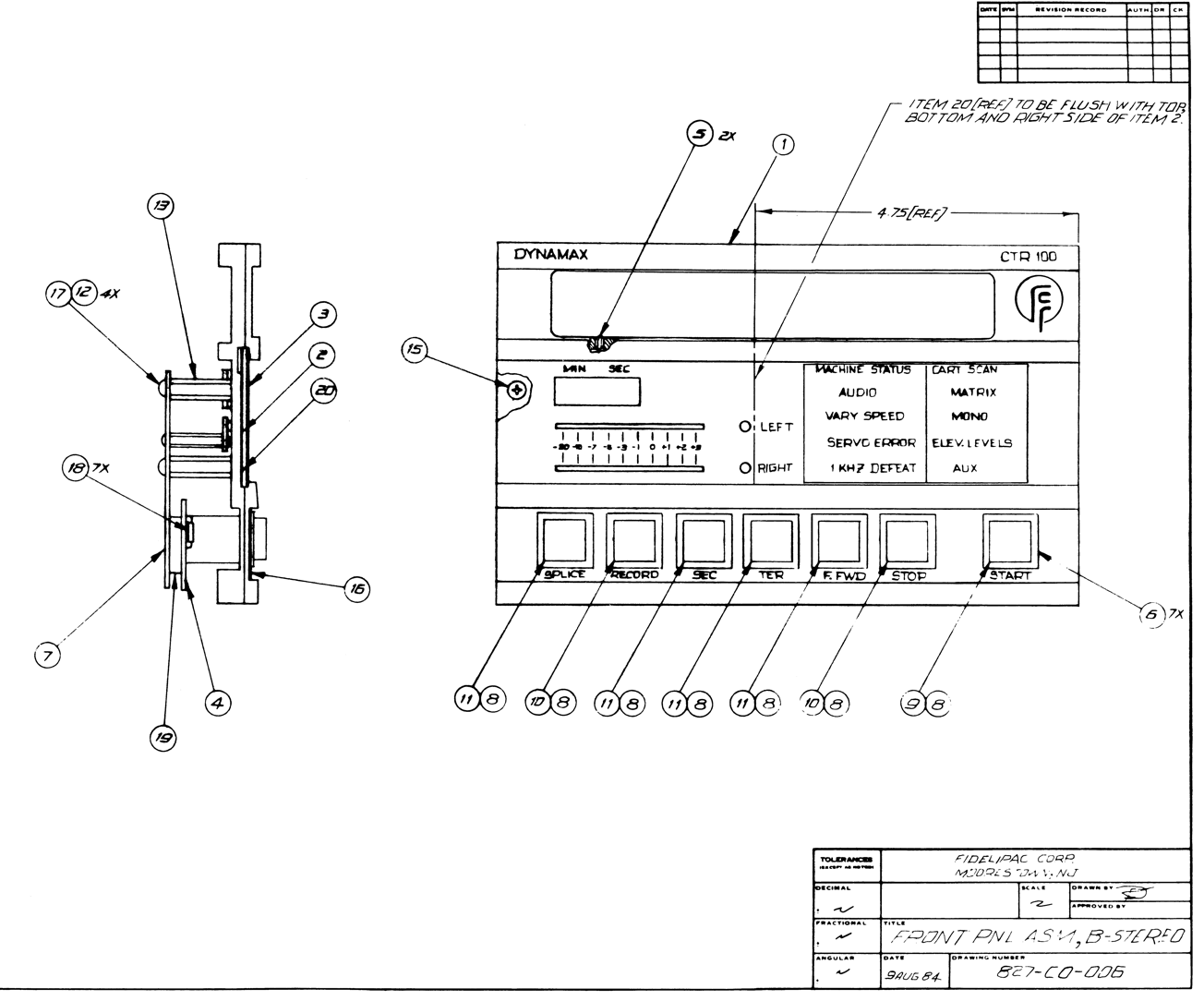

827-C0-006 drawing
