827-C0-013 Rear Panel Asm A

Page No. 00001 10/16/84 Bill Of Material, CTR100
Part Number Description Item Quantity Designation/Location
311-A0-003 XFORMER 1 15
360-A0-000 SWITCH TOGGLE 1 11
371-A0-000 FUSE 1 3
413-A0-000 SOCKET POWER 1 6
414-A0-003 TERMINAL FEMALE .062 3 19
415-A0-000 CONN 3 TERMINAL MTA 1 14
415-A0-006 CONNECTOR 4 PIN 1 17
423-A2-20N WIRE BLACK 5 13
423-A2-25N WIRE GRN 9 21
430-A0-000 FUSE HOLDER 1 2
44S-A0-000 HEAT SHRINK TUBING 3/16 4 23
44S-A0-001 HEAT SHRINK TUBING 1/8 3 22
44S-A0-002 HEAT SHRINK TUBING 3/4 1 24
541-C0-013 REAR PANEL A 1 1
5A2-A0-006 GROUND LUG 1 7
5A4-A0-001 CARD GUIDE £250 BIVA 2 4
5A4-A0-002 CARD GUIDE £400 BIVA 3 5
5B2-A0-012 SPC HEX l/4 x 9/16 LG AL 4 16
600-33-632 NUT THUMB 6-32 1 10
601-20-632 NUT HEX £6-32 3 9
60A-00-800 WASHER—FIBER 4
60C-11-600 L’ WASHER IT £6 2 26
620-08-632 SCRW PH 6-32 x 1/2 1 8
621-06-632 SCRW PH 6-32 x 3/8 PL 4 25
770-A0-000 REAR PANEL SILKSCRN 0 12

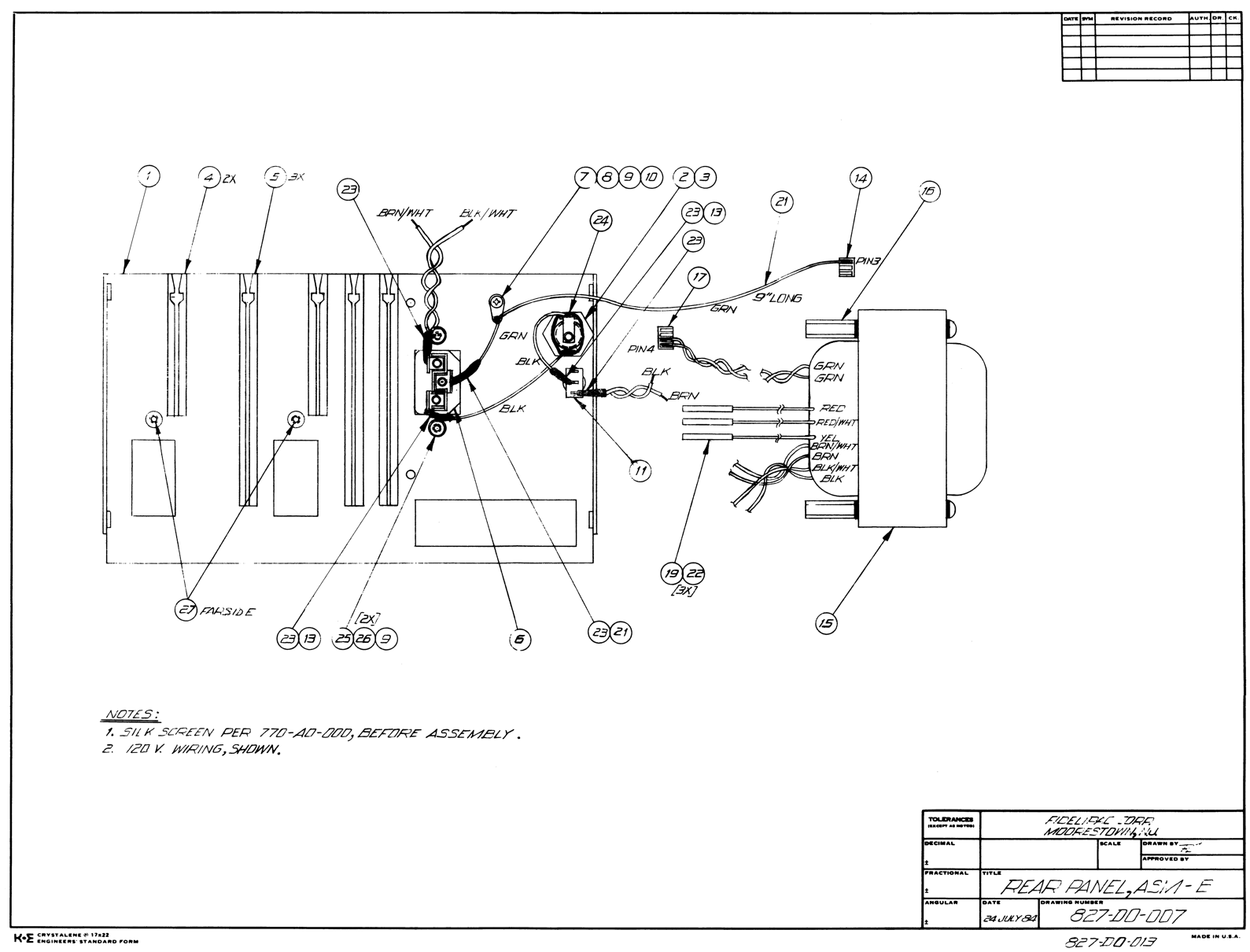

827-D0-007 & 827-D0-013 drawing
