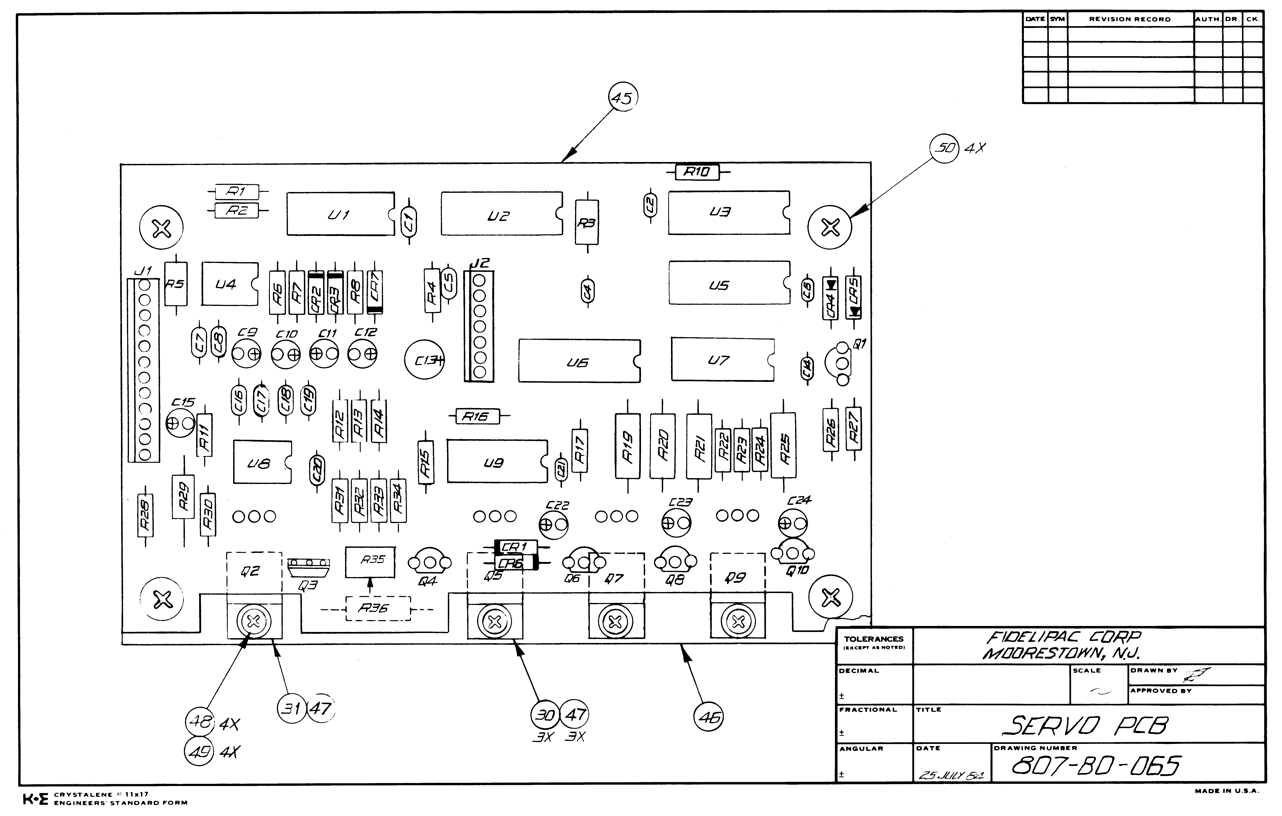

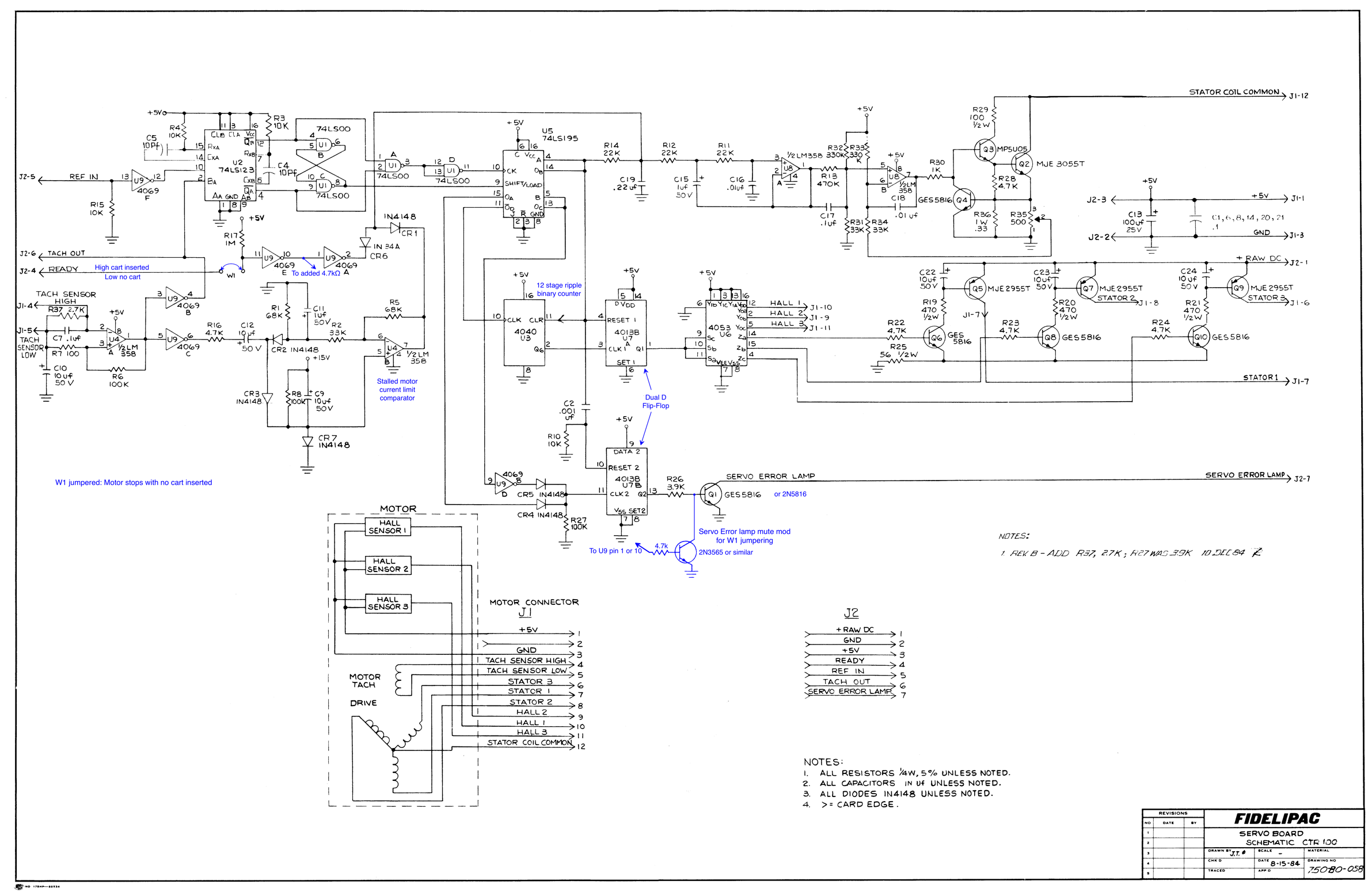

807-B0-065 Servo PCB
Page Nos. 00001 & 00002 12/05/84 Bill Of Material, CTR100
| Part Number | Description | Quantity | Item | Designation/Location |
| 006-A6-103 | .01µF 25V D CAP | 6 | 18 | C1,6,8,14,20,21 |
| 006-B4-100 | 10PF D CAP | 2 | 20 | C4,5 |
| 011-A5-105 | 1µF 50V E CAP | 2 | 23 | C11,15 |
| 011-A5-106 | 10µF 50V E CAP | 6 | 22 | C9,10,12,22-24 |
| 011-A8-107 | 100µF 25V E CAP | 1 | 26 | C13 |
| 041-A4-102 | .001 µF 63V F CAP | 1 | 19 | C2 |
| 041-A4-103 | .01µF 63V F CAP | 2 | 24 | C16,18 |
| 041-A4-104 | .1µF 63V F CAP | 2 | 21 | C7,17 |
| 041-A4-224 | .22µF 63V F CAP | 1 | 25 | C19 |
| 110-22-101 | 100 1/4W 5% CF RESIS | 1 | 4 | R7 |
| 110-22-102 | 1K 1/4W 5% CF RESIST | 1 | 11 | R30 |
| 110-22-103 | 10K 1/4W 5% CF RESIS | 4 | 5 | R3,4,15,10 |
| 110-22-104 | 100K 1/4W 5% CF RESI | 2 | 3 | R6,8 |
| 110-22-105 | 1M 1/4W 5% CF RESIST | 1 | 9 | R17 |
| 110-22-223 | 22K 1/4W 5% CF RESIS | 3 | 6 | R11,12,14 |
| 110-22-333 | 33K 1/4W 5% CF RES | 3 | 2 | R2,31,34 |
| 110-22-334 | 330K 1/4W 5% CF RES | 2 | 12 | R32,33 |
| 110-22~392 | 3.9K 1/4W 5% CF RES | 2 | 10 | R26,27 |
| 110-22-472 | 4.7K 1/4W 5% CF RES | 5 | 8 | R16,22,23,24,28 |
| 110-22-474 | 470K 1/4W 5% CF RES | 1 | 7 | R13 |
| 110-22-683 | 68K 1/4W 5% CF RESI | 2 | 1 | R1,5 |
| 110-32-101 | 100 1/2W 5% CF RES | 1 | 13 | R29 |
| 110-32-471 | 470 1/2W 5% CF RES | 3 | 14 | R19-21 |
| 110-32-560 | 56 1/2W 5% CF RES | 1 | 15 | R25 |
| 13M-33-501 | 500 V TRIMPOT | 1 | 17 | R35 |
| 150-72-33B | .33 3W 5% WW RES | 1 | 16 | R36 |
| 200-A0-000 | 1N4148 DIODE | 6 | 27 | CR1-5,7 |
| 200-A0-001 | 1N34A DIODE | 1 | 51 | CR6 |
| 210-A0-002 | GES5816 TRANSISTOR | 5 | 28 | Q1,4,6,8,10 |
| 211-A0-003 | MPSU05 TRANSISTOR | 1 | 29 | Q3 |
| 211-A0-005 | MJE2955T TRANSISTOR | 3 | 30 | Q5,7,9 |
| 211-A0-006 | MJE3055T TRANSISTOR | 1 | 31 | Q2 |
| 230-A0-009 | LM358 IC | 2 | 40 | U4,8 |
| 231-A0-003 | 74LS00 IC | 1 | 37 | U1 |
| 231-A0-011 | 74LS123 IC | 1 | 38 | U2 |
| 231-A0-023 | 4040 IC | 1 | 39 | U3 |
| 231-A0-025 | 4053 IC | 1 | 42 | U6 |
| 231-A0-030 | 4069 | 1 | 44 | U9 |
| 231-A0-034 | 4013 IC | 1 | 43 | U7 |
| 231-A0-041 | 74LS195 IC | 1 | 41 | U5 |
| 407-B0-065 | SERVO PCB | 1 | 45 |
| 410-A0-001 | 8 PIN DIP SOCKET | 2 | 32 |
| 410-A0-002 | 14 PIN DIP SOCKET | 3 | 33 |
| 410-A0-003 | 16 PIN DIP SOCKET | 4 | 34 |
| 416-A0-012 | 7 PIN HEADER | 1 | 36 | J2 |
| 416-A0-0i3 | 12 PIN HEADER | 1 | 35 | J1 |
| 440-A0-000 | SIL-PAD | 4 | 47 |
| 541-A0-020 | MOUNTING PLATE | 1 | 46 |
| 607-01-124 | SHOULDER INSULATOR | 4 | 48 |
| 621-03-440 | SCREW 4-40 x 3/16 | 4 | 49 |
| 621-05-632 | SCREW 6-32 x 5/16 | 4 | 50 |
